Roll-On Topical — Fire & Ice CBD
| Die size | 5.2153 × 3.25 in |
| Wrap circumference | 4.901 in · bottle Ø 1.56 in die runs 0.31 in long |
| Container | Berlin Packaging 1123B03 — 3 oz white HDPE roll-on |
| Colours | #46C7F4 #FCB713 #F287B7 #D11F78 |

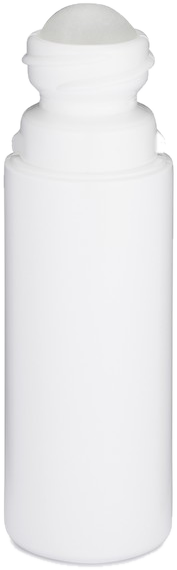

The pack — bottle + cap
Bottle · Ø 1.56 × 4.59 in
89 ml (3.009 oz) · 1" PP roller ball · continuous thread
CR cap · 35 mm
child-resistant capable · white PP
Design directions — die filled, new colours
On the container
Drop a container photo or label art here
True cylindrical wrap — the art is remapped onto the bottle radius, so edge compression is real, not a flat paste.
Tincture — 1 fl oz Full Spectrum
| Die size | bottle 4.3806 × 1.9694 in · carton 7.9694 × 11.4208 in flat |
| Wrap circumference | 4.05 in · bottle Ø 1.29 in die runs 0.33 in long |
| Container | Uline S-20037C — 1 oz clear glass dropper · carton 1.75 × 1.75 × 4.333 in |
| Colours | #46C7F4 #FCB713 #5B1B6E #D11F78 |
The pack — carton + bottle
Carton · 1.75 × 1.75 × 4.333 in
flat die 7.9694 × 11.4208 in · drag to turn
Bottle · Ø 1.29 × 3.09 in
1 fl oz (30 ml) · 20-400 neck · glass dropper
Design directions — AM / PM

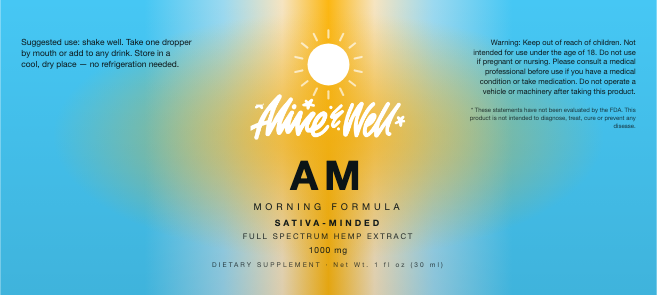

AM — bottle4.381 × 1.969 in

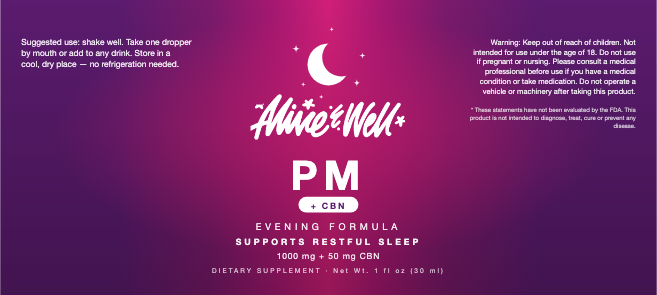

PM — bottle4.381 × 1.969 in
AM — cartonart band

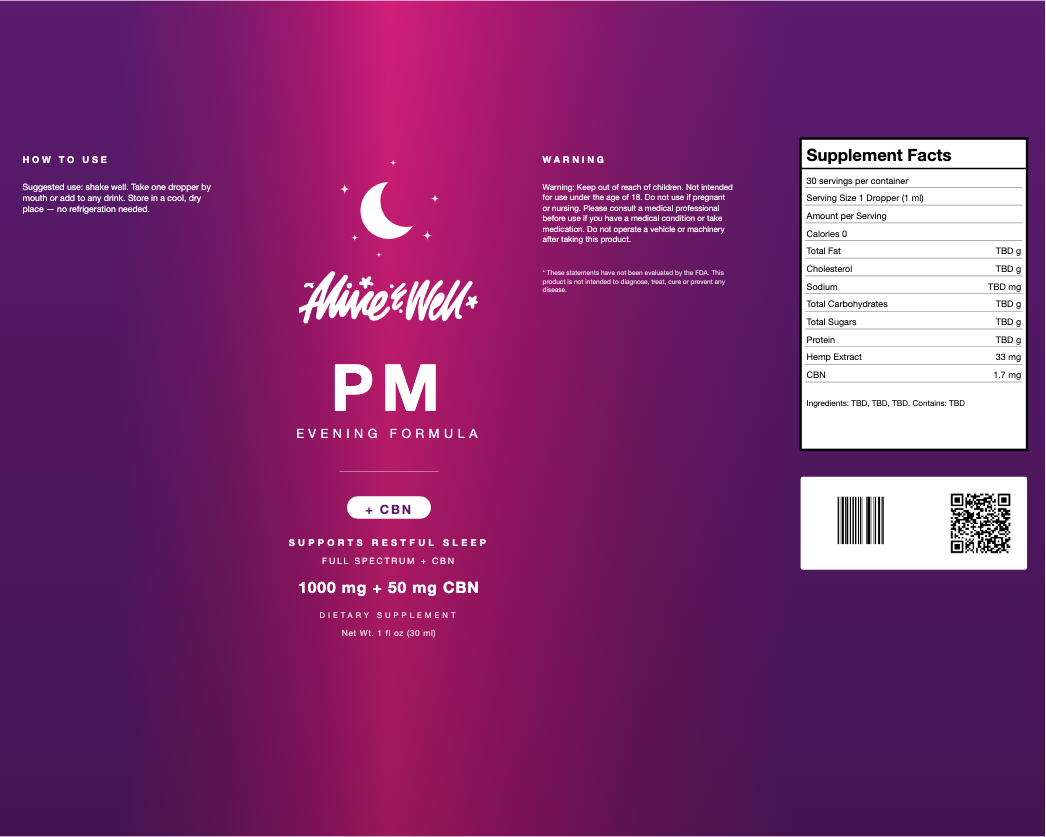

PM — cartonart band
On the container
Drop a different container photo here

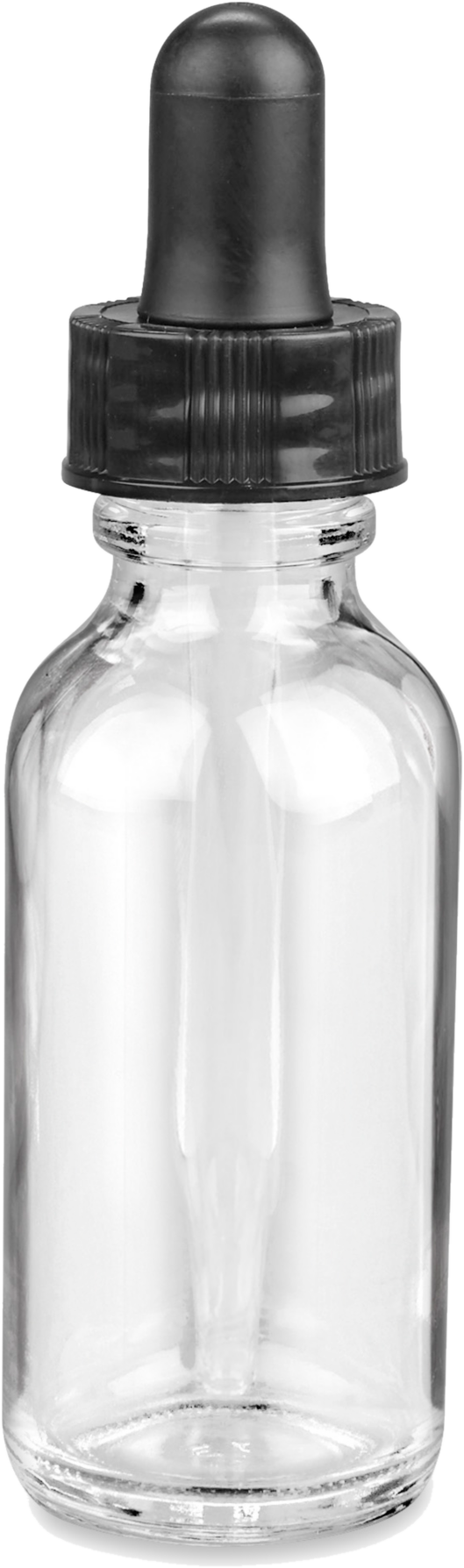

Real Uline S-20037C, mapped to its published Ø 1.29 in. The red band is the panel Uline says you get; the label overruns it.
Pop-Vac 2 ml Dab Container
| Die size | wrap 4.2739 × 0.9348 in · top Ø 1.2402 in · base Ø 0.9449 in |
| Wrap circumference | 4.274 in · jar Ø 1.360 in fits |
| Container | IV Thought Pop-Vac 2 ml — vacuum-seal CR jar (DL-2ml-R.0.3) |
| Colours | #46C7F4 #FCB713 #F287B7 #D11F78 |
The container

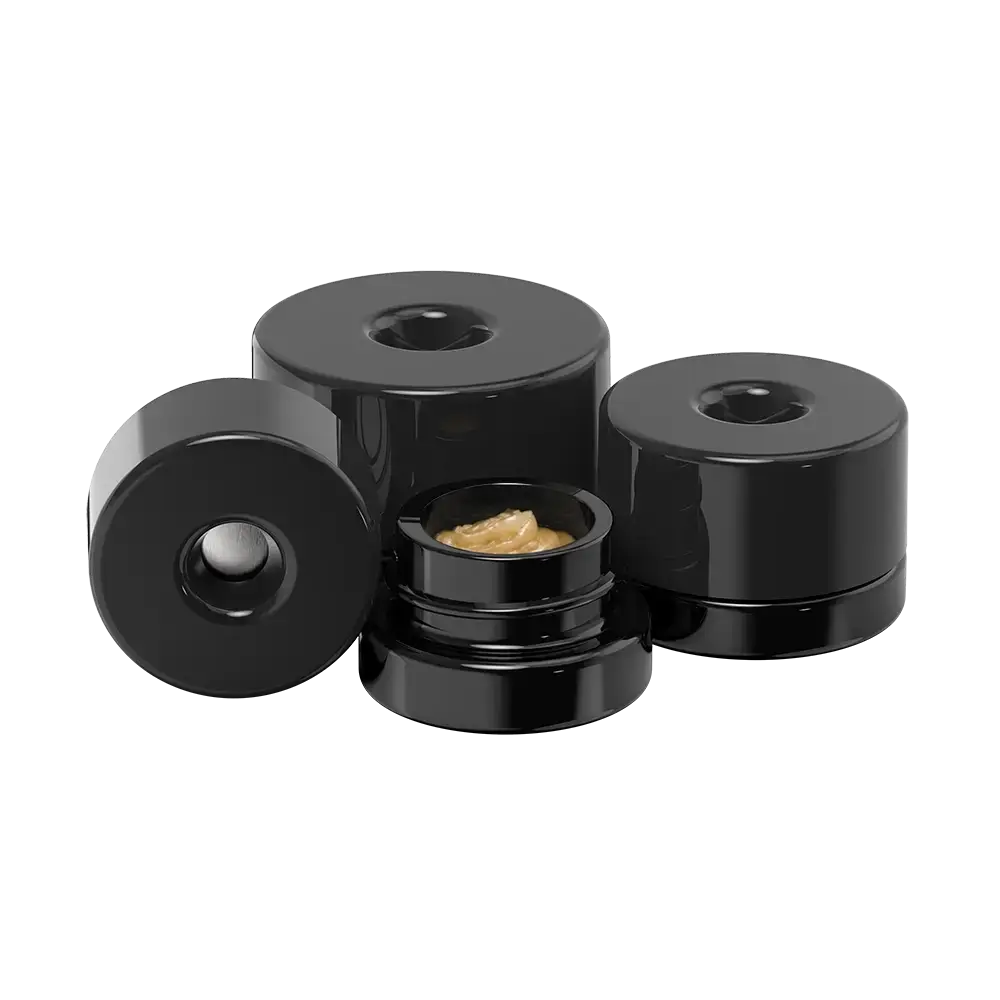

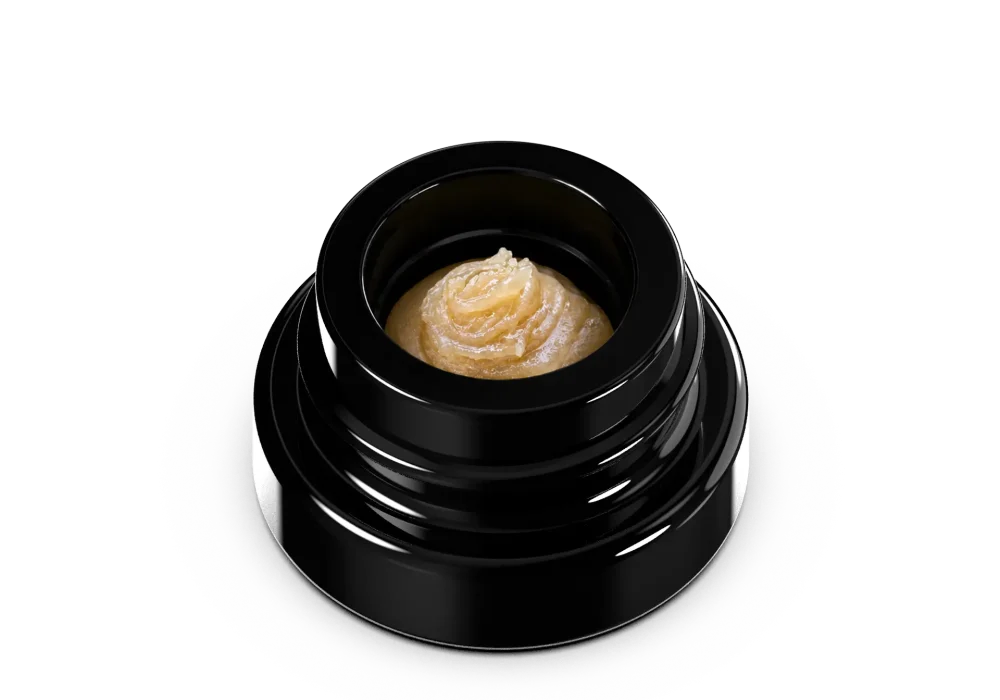

Pop-Vac jar · Ø 1.360 in
2 ml (~1 g fill) · vacuum seal · CR press-and-twist
Cap face · vacuum button
recessed dimple — why the top sticker is a doughnut
Option gallery — pick one
On the container
Drop the Pop-Vac container photo here
Left = side view with the wrap mapped around the 1.360 in body. Right = lid straight down with the doughnut sticker.
Reference sheets

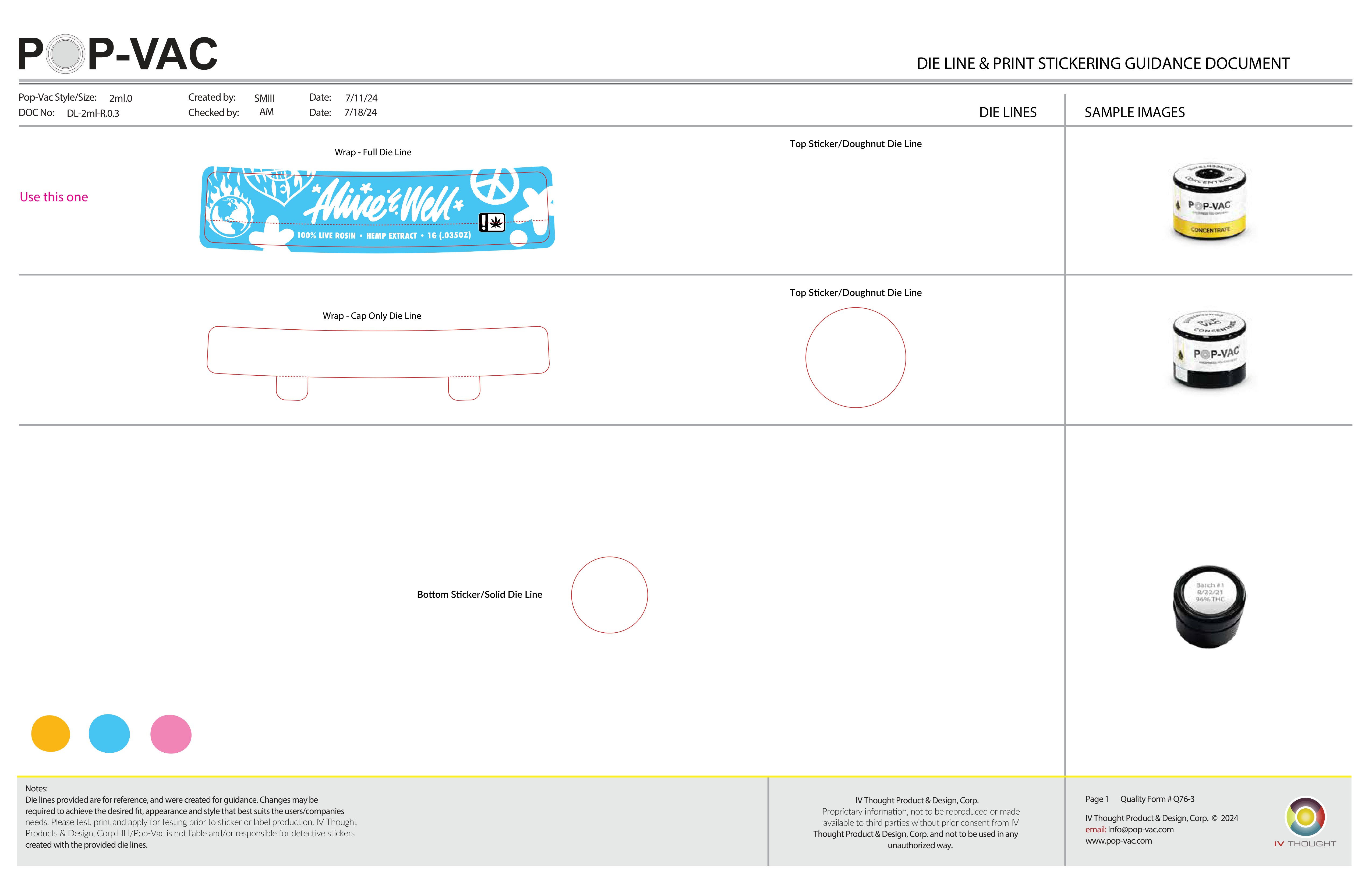

IV Thought die line & guidance“Use this one” → full wrap

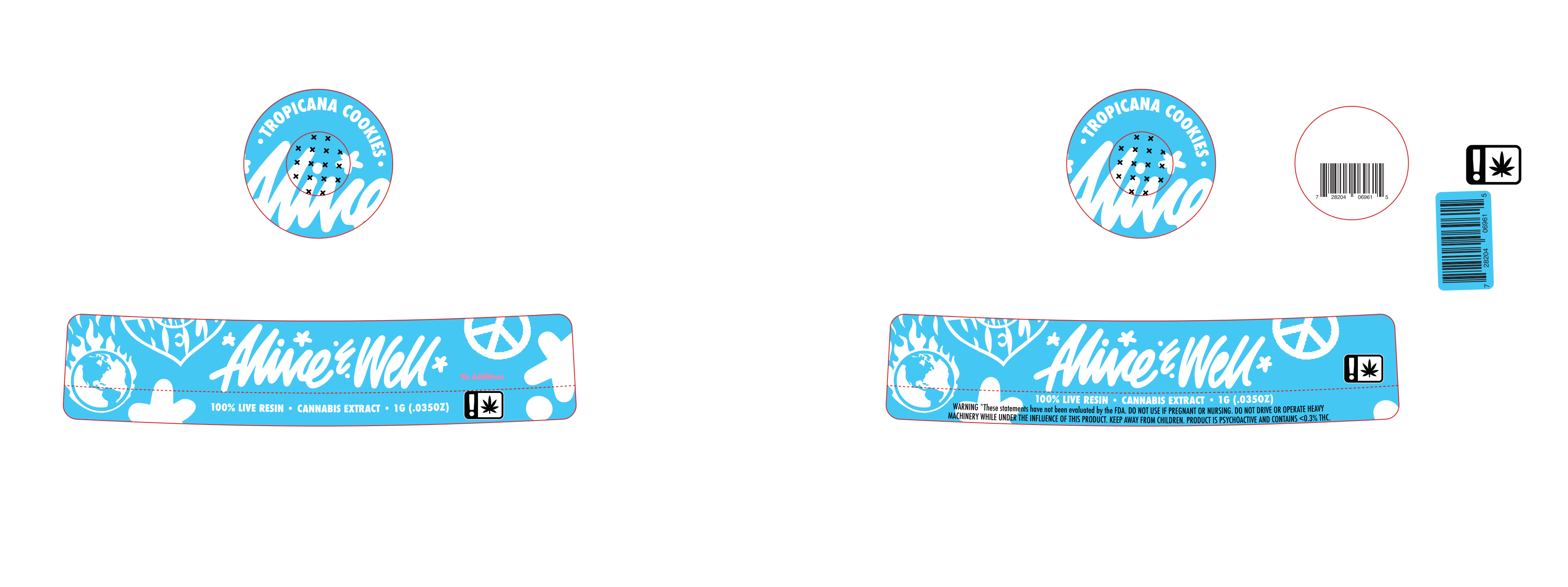

mockup dab.ai — the CA-rec versionolder file
conflict This one reads
100% LIVE RESIN · CANNABIS EXTRACT and carries a CA warning block + barcode
7 28204 06861 5. Every newer file reads LIVE ROSIN · HEMP EXTRACT.
